VOD Vacuum Refining Furnace Introduction
VOD vacuum refining furnace has multiple functions such as vacuum degassing, oxygen blowing decarburization, vacuum charging, argon blowing stirring, non-vacuum temperature measurement sampling, wire feeding, etc.
Sanrui is one of famous China VOD melting furnace and Vacuum degasser supplier. The custom-designed vacuum degasser range of for sale is from 10 tons to 150 tons.
VOD Vacuum Refining Furnace Introduction
VOD vacuum refining furnace has multiple functions such as vacuum degassing, oxygen blowing decarburization, vacuum charging, argon blowing stirring, non-vacuum temperature measurement sampling, wire feeding, etc. VOD type vacuum refining equipment is one of the most widely used refining equipment outside the furnace in the world. The overall structure of VOD melting furnace adopts one tank and one cover, the tank cover is movable, and the tank body is fixed pit type.
The main equipment of VD vacuum degassing is mainly composed of a vacuum tank arranged on the ground and a vacuum tank cover moving on the platform. The vacuum tank cover is hung on the transport vehicle through a lifting device. A 2m' vacuum charging tank, a peephole, and a TV camera hole are provided on the vacuum tank cover; a ladle heat shield cover is hung inside the tank cover.

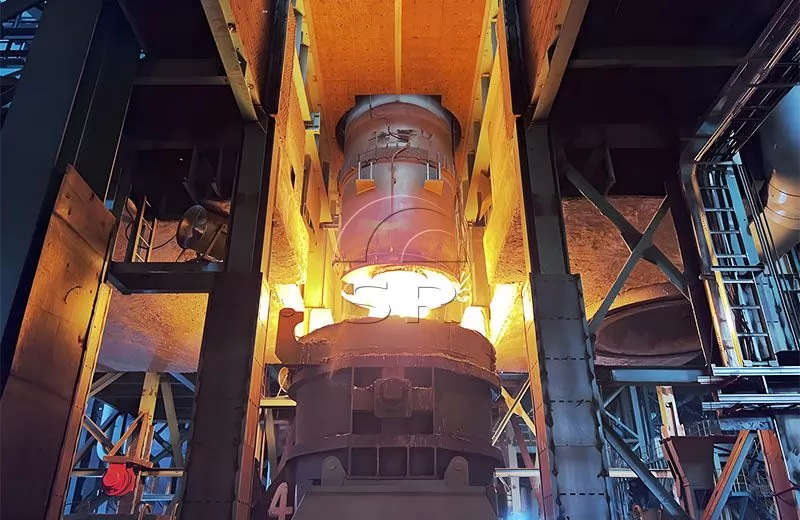

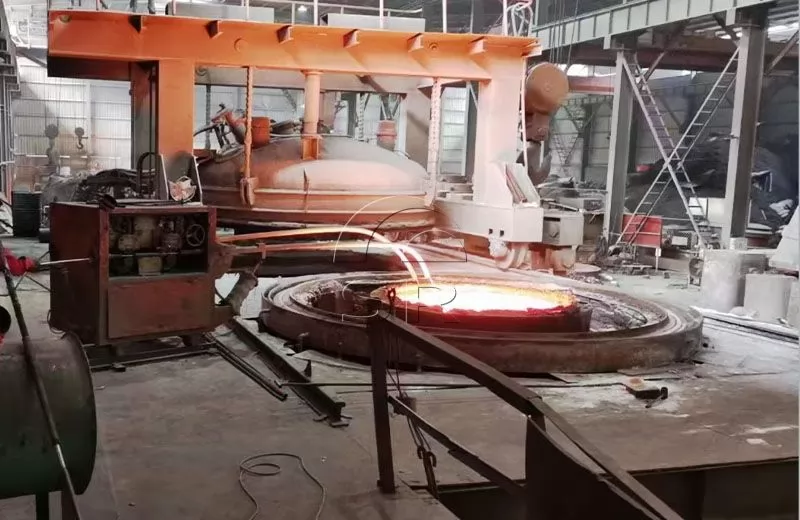

The overall structure of VOD ladle refining furnace adopts one tank and one cover, the tank cover is movable, and the tank body is fixed pit type.
When no oxygen blowing operation is performed, the VOD furnace can fully realize the operation function of the VD furnace. The tank body is connected to the vacuum pump, and the three-stage dust collector and the main stop valve are used to open and close the tank body and the vacuum pump. Before the ladle is hoisted into the tank body, the vacuum pipeline can be pre-evacuated. In this way, the vacuum pump can be fully utilized, the tank body's evacuation time and temperature drop can be shortened, and the VOD furnace can be matched with the electric furnace, LF, and casting line to achieve the best effect.
Main Application of VOD Vacuum Refining Furnace
VOD ladle refining furnace can refine and produce high-quality low-alloy steel, low-carbon steel, bearing steel, alloy structural steel, stainless steel, mold steel, tool steel, ultra-low carbon steel, etc.
VOD melting furnace can also refine and produce steel types with strict requirements on molten steel gas, inclusions, and chemical composition.
VOD furnace has extremely strong vacuum degassing ability, vacuum feeding, alloy composition fine-tuning; vacuum degassing; vacuum oxygen blowing decarburization; bottom blowing argon stirring.
Characteristics of VOD Vacuum Refining Furnace Equipment

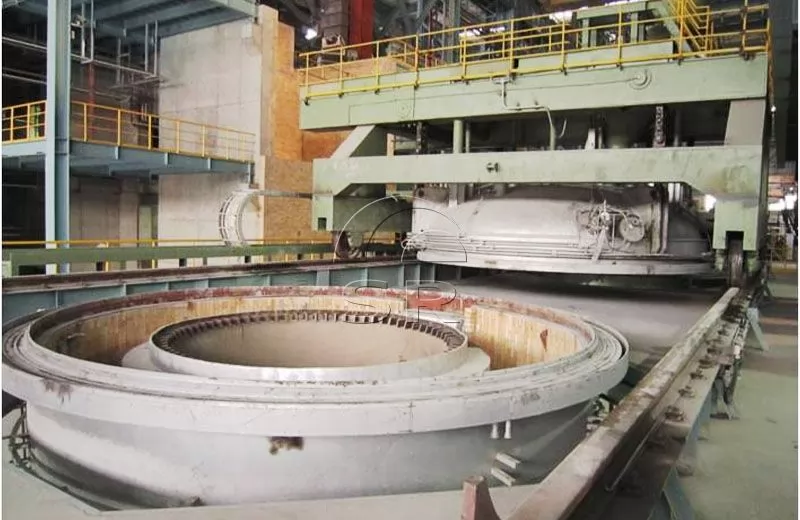

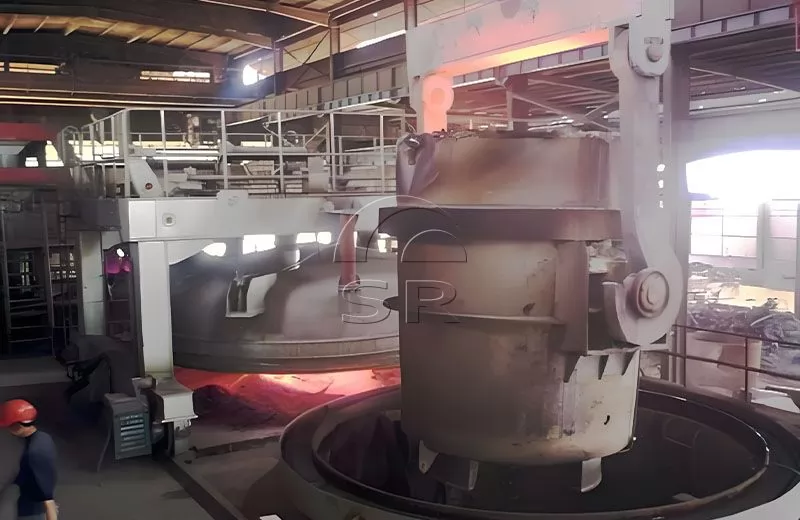

1. The vacuum tank receives the ladle to be processed. After the crane places the ladle in the vacuum tank, the argon pipe is manually connected. The tank is a welded structure and is equipped with a ladle guide structure to facilitate the lifting of the ladle. It has a refractory lining to prevent thermal stress. The tank bottom is equipped with a leak-proof device.

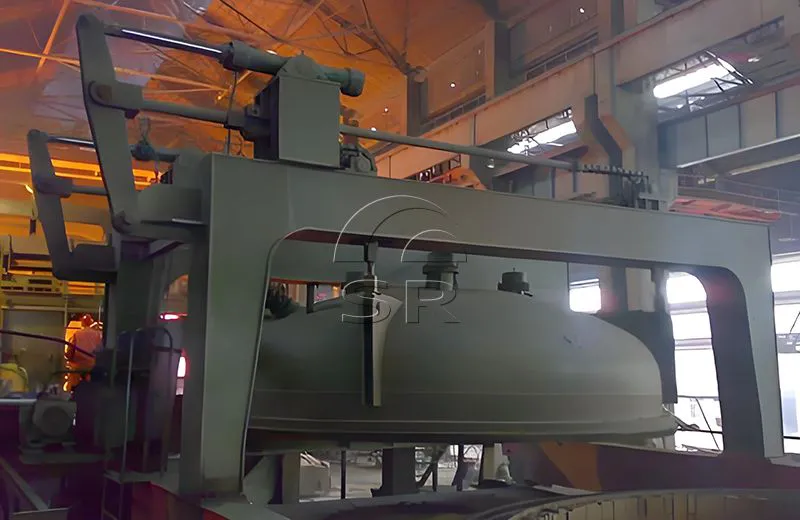

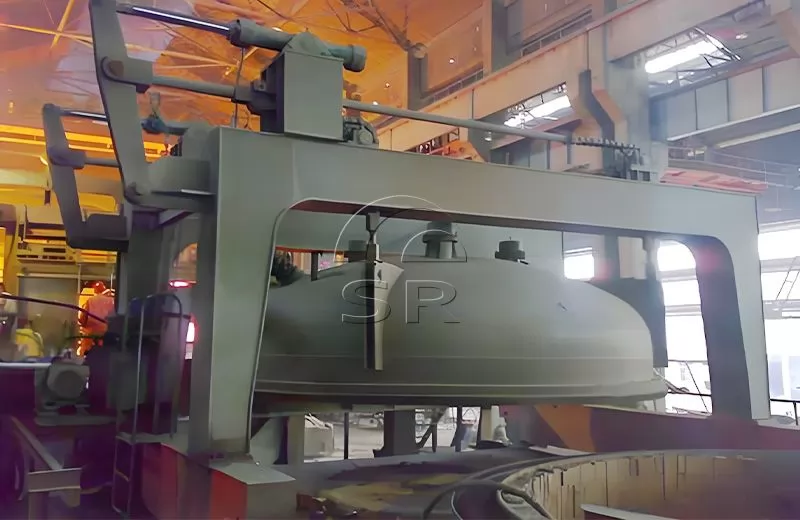

2. The tank cover is electrically-mechanically driven, and the tank cover is hydraulically driven. The tank cover is a disc-shaped structure with a refractory lining, and the shielding cover is equipped with a straight section to increase the free space.

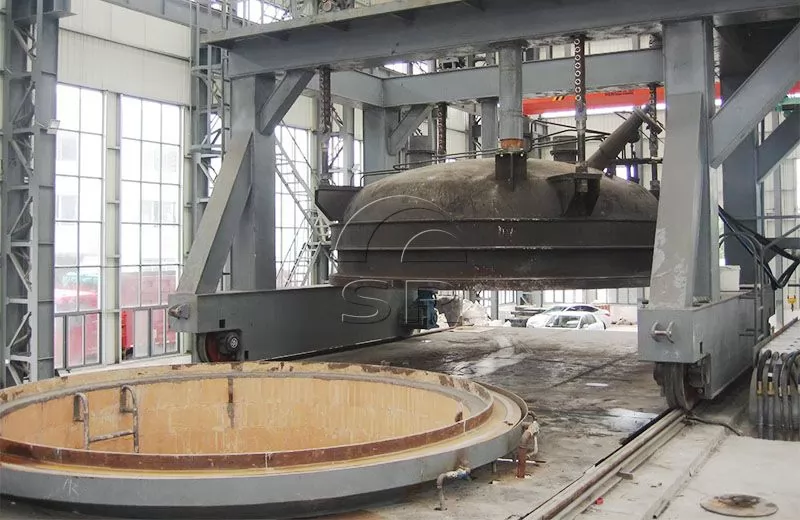

3. The tank cover traveler adopts variable frequency speed regulation to make the cover car start, walk and stop smoothly.
4. The tank cover adopts a disc-shaped head to reduce the deadweight of the tank cover, increase the strength, and make the force distribution of the tank cover more reasonable. The tank cover has a certain upright section to adapt to the shielding cover structure.
5. The tank cover is equipped with an oxygen blowing device, a vacuum hopper, an artificial observation window, a TV camera, and a temperature measurement and sampling device under non-vacuum conditions, which can observe the smelting state in the furnace at any time, realize the adjustment of alloy composition and temperature measurement and sampling under non-vacuum conditions.
6. A single-layer silicone rubber sealing ring is used to seal between the tank cover and the tank body. A sealing ring is set on the flange of the tank body, and a blowing device is set on the tank cover to prevent the hot air flow from burning the sealing ring, and to blow away dust and debris on the flange of the tank body.
7. It adopts an advanced vacuum feeding mechanism with good sealing and easy operation. It can realize feeding and slag making under vacuum, adjust the alloy composition, and improve the recovery rate of the alloy.
8. The vacuum tank and the tank cover are built with refractory materials for protection.

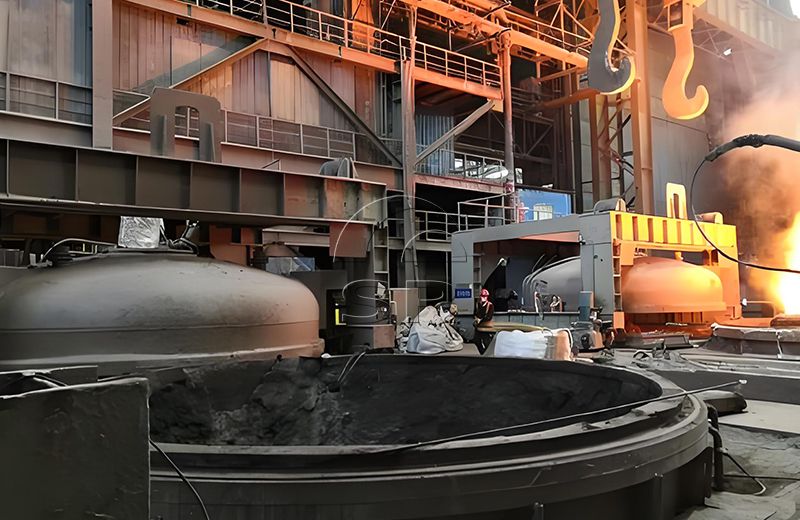

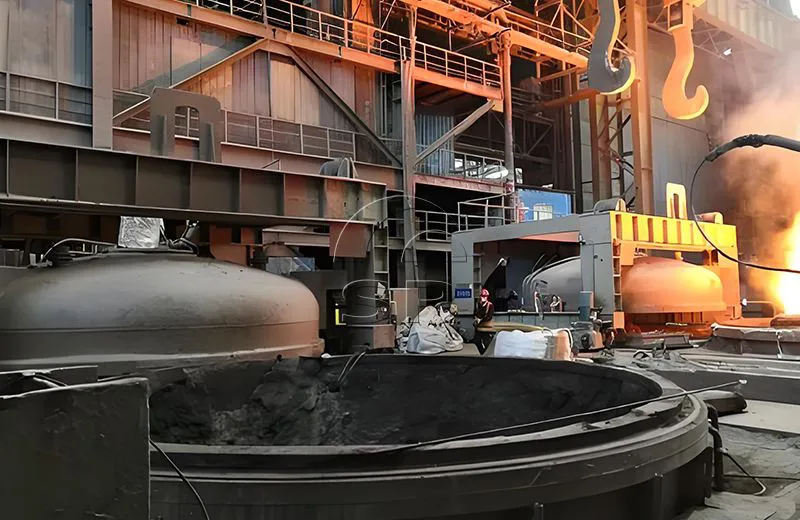

VOD Vacuum Refining Furnace Equipment Composition
The VOD Vacuum Refining Furnace equipment includes: vacuum tank system, vacuum tank cover system, tank cover lifting and tank cover car system, oxygen blowing device, vacuum feeding device, vacuum pump system, vacuum pipeline system connecting the tank and vacuum pump, hydraulic system, oxygen blowing system, argon blowing system, compressed air system, cooling water system, TV camera device, electrical control and instrument monitoring equipment system.
Sanrui VOD Vacuum Refining Furnace Technical Advantages
The vacuum tank is sealed with a single-layer hollow sealing ring and protected by water cooling;
The tank cover adopts a butterfly head structure with high strength and uniform force;
The vacuum tank truck adopts a frequency converter to adjust the speed and travel smoothly;
The vacuum pipeline adopts a water-cooled pipeline to reduce the exhaust gas temperature and air flow temperature;
The artificial observation window observation glass is equipped with an inert gas protection and a strobe device;
It has artificial temperature measurement sampling and automatic feeding under vacuum conditions;
The oxygen blowing device is equipped with a special sealing device, which is less wear and leak-proof, and is convenient for oxygen gun adjustment;
Argon blowing and stirring;
Equipped with a PLC control system.
Simple and clear operation and easy maintenance.
Low investment, quick results, and low energy consumption.
Strong processability and advanced software programming.
Main Technical Parameters of VOD Vacuum Refining Furnace
| Rated capacity | Inner diameter of steel ladle | Vacuum pump suction volume | Working vacuum degree | Vacuum tank size |
| (T) | (mm) | kg/h | (Pa) | (mm) |
| 15 | 2200 | 50 | 67 | 3800×4100 |
| 25 | 2600 | 180 | 4000×4600 | |
| 30 | 2700 | 200 | 4200×5175 | |
| 40 | 2900 | 250 | 4800×5300 | |
| 50 | 3000 | 280 | 5300×5400 | |
| 60 | 3150 | 360 | 5300×5500 | |
| 70 | 3200 | 380 | 5400×5600 | |
| 80 | 3300 | 380 | 5500×5700 | |
| 90 | 3400 | 380 | 5600×5800 | |
| 100 | 3500 | 400 | 5600×5800 | |
| 120 | 3600 | 420 | 6200×6400 | |
| 150 | 3900 | 450 | 6300×6600 |
Scope of VOD Vacuum Refining Furnace Supply
The supply scope of VD/VOD vacuum refining furnace equipment includes fixed vacuum tank or vehicle-mounted tank, vacuum tank cover, vacuum charging device, oxygen blowing device (referring to VOD furnace), electrical automation system, vacuum pipeline, dust removal device and vacuum pump, etc.
The customization range of VOD melting furnace is from 10 tons to 150 tons.

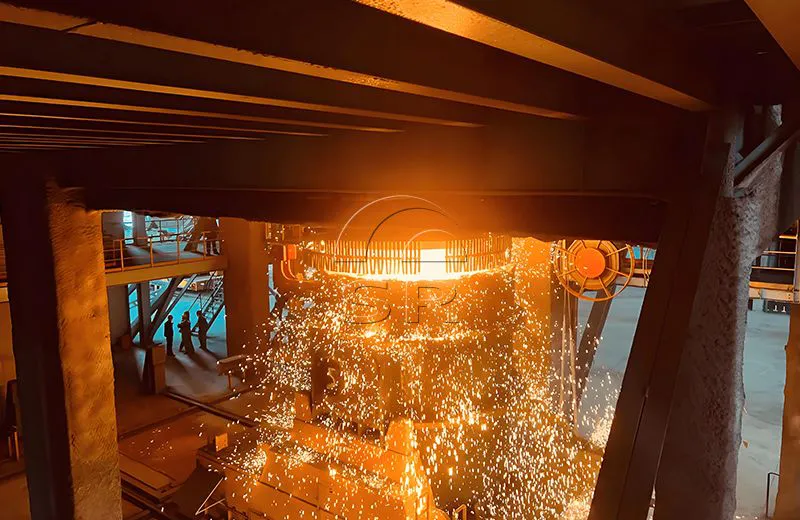

VOD Vacuum Refining Furnace Smelting Process
01
Vacuum oxygen blowing treatment process of molten steel:
Ladle into the tank─connect argon─cover car moving─drop cover─lower oxygen gun─open main stop valve─vacuum treatment─break vacuum─temperature measurement and sampling─lift cover─cover car moving─disconnect argon─ladle out of the tank.
02
Metallurgical properties: Gas inclusions in molten steel after treatment can meet the following requirements:
[O] < 15～20 ppm
[H] < 1～2 ppm
[N] < 40 ppm
Sanrui VOD Vacuum Refining Furnace Technology Optimization
The vacuum tank of the VOD Vacuum Refining Furnace is sealed with a single-layer hollow sealing ring and protected by water cooling;
The tank cover adopts a butterfly head structure;
The vacuum tank car adopts a frequency converter to adjust the speed and travel smoothly;
The vacuum pipeline adopts a water-cooled pipeline to reduce the exhaust gas temperature and air flow temperature;
The artificial observation window observation glass is equipped with an inert gas protection and a strobe device;
Manual temperature measurement and sampling under vacuum conditions;
Automatic feeding system;
The oxygen blowing device is equipped with a special sealing device, which is less wear, leak-proof, and easy to adjust the oxygen gun;
Argon blowing and stirring;
Advanced electrode control system.
Equipped with PLC control system
Services Provided by Sanrui
1As vacuum degasser supplier and manufacturer, Sanrui can provide basic VOD custom-designed vacuum furnace layout and layout drawings
2Sanrui will send engineers to your factory to install and debug the machine, and provide reliable after-sales service.
3Sanrui provides training for operators and maintenance personnel, and the smelting equipment is easy to operate and maintain
4Competitive price and excellent quality
5Low investment, high production efficiency, high rate of return
6Stable performance of smelting equipment, safe production
7Products can be customized according to different needs
8Production capacity can be adjusted according to customer requirements
9Environmentally friendly, low energy consumption
Sanrui provides vod furnace engineering consulting, R&D, design, equipment supply, system integration and software development, construction, installation, commissioning, project management, technical services and training, production guidance, operation and maintenance, spare parts supply and other comprehensive engineering and technical services.
Send us your detailed project requirements, and our engineering team will design VOD Vacuum Refining Furnace production line solution based on your needs.
