Introduction to Submerged Arc Furnace
Submerged arc furnaces are divided into three types according to power supply methods:
1) AC submerged arc furnace
2) DC submerged arc furnace
3) Low frequency submerged arc furnace
Sanrui Electric Furnace is a submerged arc furnace manufacturer and submerged arc furnace supplier. Sanrui can provide customized submerged arc furnace design according to clients technical requirements. Some SAF accessories can be customized according to the provided drawings.
The main mechanical device of submerged arc furnace design by Sanui is based on China's national conditions and draws on international advanced technologies such as Demark and Perlmutter. It adopts a hydraulic pressure ring, a suspended cylinder hydraulic lifting mechanism, and self-developed electrode adjustment for the SAF submerged arc furnace. The device is an automatic control charged voltage discharge device that integrates machinery, electrical appliances, pneumatics and hydraulics, water-cooled cables, space lattice copper tube short network copper reverse parallel connection, forged copper tiles, etc. The main equipment adopts a semi-enclosed fixed furnace type with a low hood.
Main Application of Submerged Arc Furnace
SAF mainly used to produce ferroalloys (such as ferrotungsten, high carbon ferromanganese, high carbon ferrosilicon, high carbon ferrochromium, ferronickel alloys).
SAF Submerged Arc Furnace also used to produce industrial silicon, calcium carbide, corundum, yellow phosphorus, etc.
Submerged arc furnaces are used in steel, non-metal and other industries.
Characteristics of Submerged Arc Furnace Equipment
1. High Temperature and Low Energy Consumption
The working temperature of the submerged arc furnace designed is as high as over 1500°C, so it can melt many high melting point metals and compounds. At the same time, because it can use waste gas such as blast furnace gas as fuel, the energy consumption during the smelting process is relatively low.
2. High Production Efficiency
The submerged arc furnace designed has a fast smelting speed, can handle a large amount of ore, and has the characteristics of continuous operation and efficient operation.
3.Reusable
The metal materials obtained by smelting in submerged arc furnaces can be reused, saving raw materials and reducing waste, which is in line with the concept of sustainable development.
Submerged Arc Furnace Equipment Composition
The submerged arc furnace mainly consists of furnace shell, furnace hood, furnace cover, furnace lining, short mesh system, water cooling system, smoke exhaust system, dust removal system, electrode shell, electrode holder, electrode pressure and lifting system, loading and unloading system, and controller , burn-through device, hydraulic system, cooling water system, tap casting system, submerged arc furnace transformer and high-voltage control and protection system, low-voltage control and protection system, computer operating system, water-cooled cable, etc. Other accessories, dust removal, cooling tower systems, etc. are available as needed.
Sanrui Submerged Arc Furnace Technical Advantages
The operation is simple and intuitive, and the human-machine dialogue effect is very friendly;
The electrode lifting speed adjustment range is large and the electrode can be raised quickly;
The non-sensitive area is continuously adjustable, and the size of the non-sensitive area can be adjusted at any time according to the furnace conditions; the system response time is short and the adjustment accuracy is high;
Fast arc stabilization, accurate current regulation, and small impact on the power grid;
Due to the use of PLC photoelectric isolation control, it has strong anti-electromagnetic interference capabilities. In addition, the system adopts a modular design, which makes the operation stable and reliable, and the failure rate is extremely low;
Using PLC programming, more complex calculations can be performed, such as three-phase power, current, voltage balance control, etc., and program modification is extremely convenient;
The operation is simple and clear, and the maintenance is convenient;
Low investment, quick results and low energy consumption.
It has strong craftsmanship and advanced software programming.
Main Technical Parameters of Submerged Arc Furnace
| Capacity | Furnace Type | Materials | Secondary Voltage | Working Voltage | Dia of Electrode | Electrode distribution circle | Dia of Furnace Shell | Height of Furnace Shell |
| 6300KVA | Lower Gas Hood Semi-closed | Silicon iron | 94~126V | 110V | φ780 | φ2000 | φ6100 | 3600 |
| Manganese iron | 94~126v | 106V | φ780 | φ2000 | φ6200 | 3600 | ||
| Manganese-silicon alloy | 94~126V | 106V | φ780 | φ2000 | φ6200 | 3600 | ||
| High-carbon chromium iron | 94~126V | 106V | φ780 | φ2000 | φ6200 | 3600 | ||
| Silicon | 100~132V | 130V | φ600 | φ1900 | φ5900 | 3400 | ||
| Ferronickel | 128~272V | 200V | φ720 | φ2100 | φ7200 | 4200 | ||
| 12500KVA | Lower Gas Hood Semi-closed | Silicon iron | 120~168V | 141V | φ1020 | φ2600 | φ7600 | 4300 |
| Manganese iron | 120~168V | 138V | φ1020 | φ2600±50 | φ7600 | 4300 | ||
| Manganese-silicon alloy | 120~168V | 138V | φ1020 | φ2500±50 | φ7600 | 4300 | ||
| High-carbon chromium iron | 120~168V | 146V | φ1020 | φ2600 | φ7600 | 4300 | ||
| Silicon | 120~184V | 152V | φ900 | φ2500 | φ7300 | 4200 | ||
| Ferronickel | 222~322V | 250V | φ960 | φ2800 | φ8500 | 4800 | ||
| 16500KVA | Lower Gas Hood Semi-closed | Silicon iron | 136~190V | 154V | φ1200 | φ3000 | φ8200 | 4400 |
| Manganese iron | 136~190V | 144V | φ1200 | φ3200 | φ8600 | 4800 | ||
| Manganese-silicon alloy | 136~190V | 147V | φ1200 | φ3100±50 | φ8600 | 4800 | ||
| High-carbon chromium iron | 136~190V | 158V | φ1200 | φ3000 | φ8600 | 4800 | ||
| Ferronickel | 248~392V | 320V | φ1050 | φ3500 | φ9800 | 5200 | ||
| 25000KVA | Lower Gas Hood Semi-closed | Silicon iron | 90~180~240V | 200V | φ1250 | φ3200±100 | φ8600 | 4600 |
| Manganese iron | 130~169~208V | 181V | φ1300 | φ3800±100 | φ8600 | 5300 | ||
| Manganese-silicon alloy | 130~169~211V | 184V | φ1300 | φ3600±100 | φ8600 | 5300 | ||
| High-carbon chromium iron | 150~220~260V | 210V | φ1300 | φ3600±100 | φ8800 | 5300 | ||
| Ferronickel | 300~460V | 380V | φ1220 | φ3900 | φ11500 | 5600 |
Scope of Submerged Arc Furnace Supply
Sanrui Electric Furnace is a submerged arc furnace manufacturer and submerged arc furnace supplier. Sanrui can provide customized;submerged arc furnace design according to clients technical requirements. Some SAF accessories can be customized according to the provided drawings.
Raw material supply system: hopper, feeding pipe

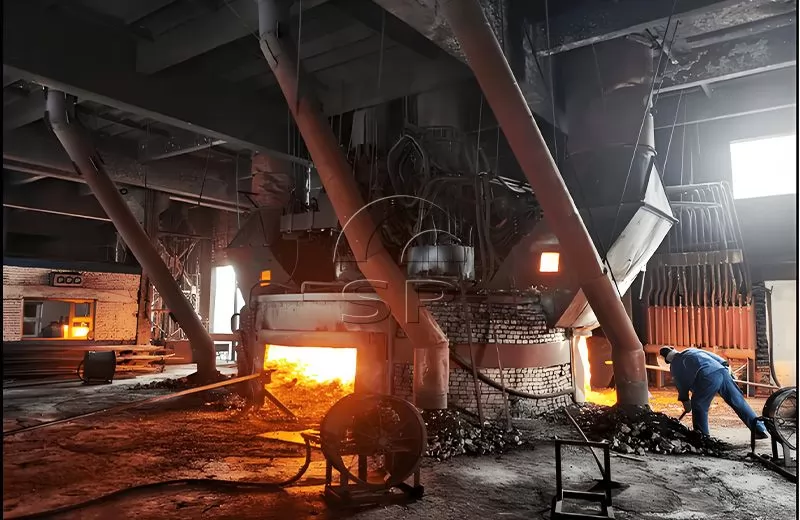

Furnace body: furnace body, furnace shell, furnace bottom support beam, furnace top ring, furnace lining

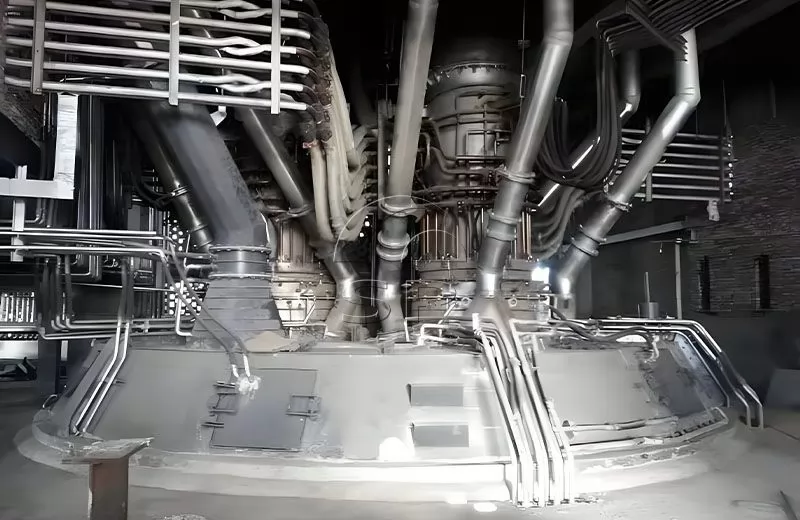

Semi-enclosed furnace cover: semi-enclosed furnace top, furnace cover side panels and furnace door, electrode sealing device, chimney, outlet smoke hood and exhaust pipe

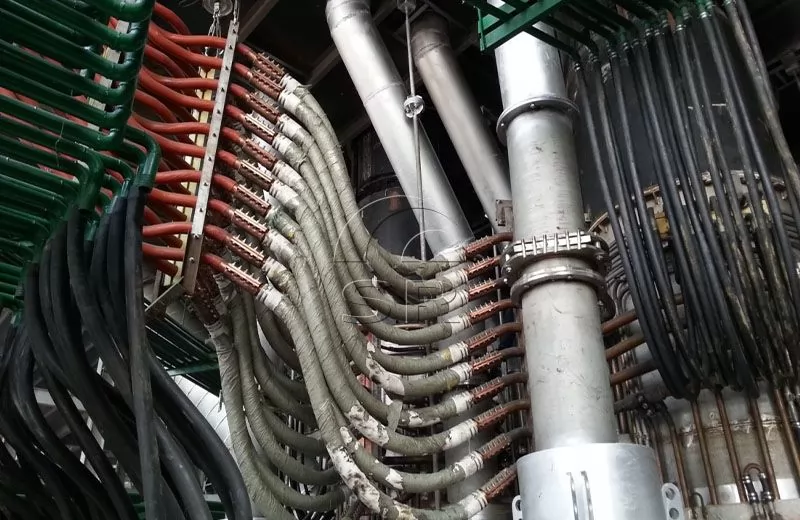

Short network: compensator, conductive copper bar, short network hanging system, collector ring and bracket, cable, conductive plate

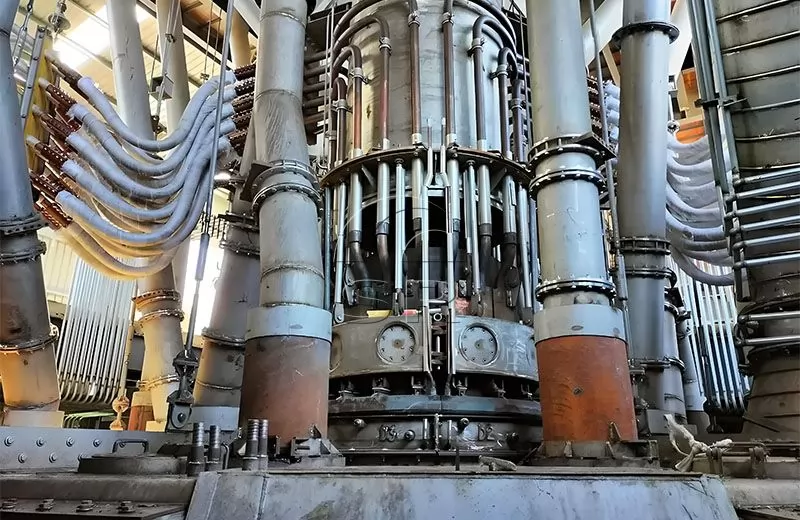

Electrode device: electrode holding tube, electrode shell, electrode clamping device, electrode pressing device, electrode lifting device, electrode guide and distribution circle adjustment, steel platform
Short network: stainless steel bracket, compensator, water-cooled cable, stainless steel bracket, water-cooled conductive copper pipe
Cooling water system: water inlet distributor, return water tank, pressure gauge, thermometer, valve
Hydraulic system: motor, pump, filter, oil tank, control valve, accumulator
Submerged arc furnace transformer
Low-voltage electrical system
Low-voltage electrical system: low-voltage electrical control, low-voltage power supply cabinet, low-voltage protection cabinet, electrode lifting control console
Automation control system: Siemens PLC

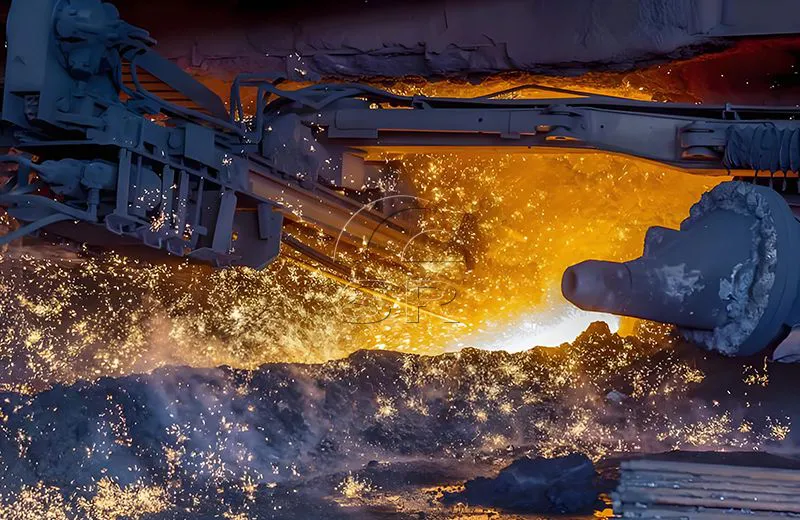

Submerged Arc Furnace Smelting Process
01
SAF Submerged arc furnace is a closed environmentally friendly and energy-saving solution, suitable for ferroalloys (such as ferrotungsten, high carbon ferromanganese, high carbon ferrosilicon, high carbon ferrochrome, nickel ferroalloy) and industrial silicon, calcium carbide, corundum , yellow phosphorus, etc. Submerged arc furnace preheating can eliminate water and volatile components, thereby stabilizing smelting process conditions and reducing the unit energy consumption of the furnace.
02
Water injection into the furnace shell and forced ventilation at the bottom of the furnace ensure effective cooling. The thermally conductive carbon lining combined with effective cooling forms a spontaneous freezing layer on the hot side of the lining, minimizing lining erosion and improving thermal efficiency.
03
The characteristics of the submerged arc furnace are that it uses carbon or magnesium refractory materials as the furnace lining and uses self-trained electrodes.

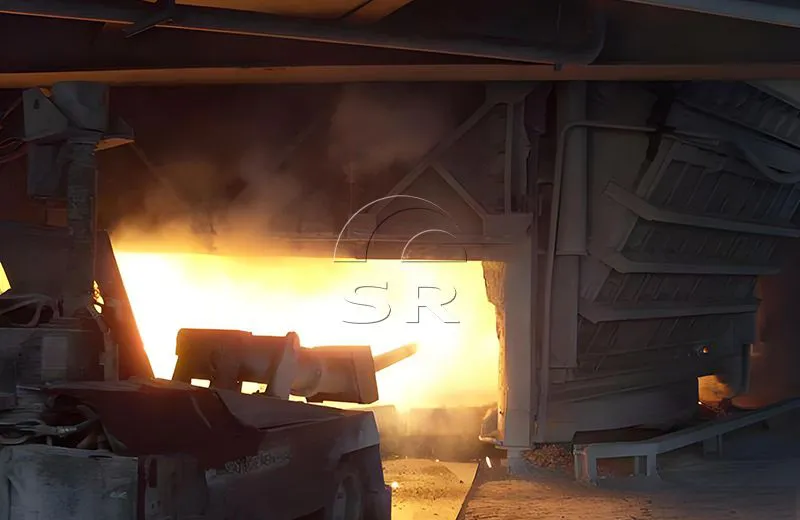

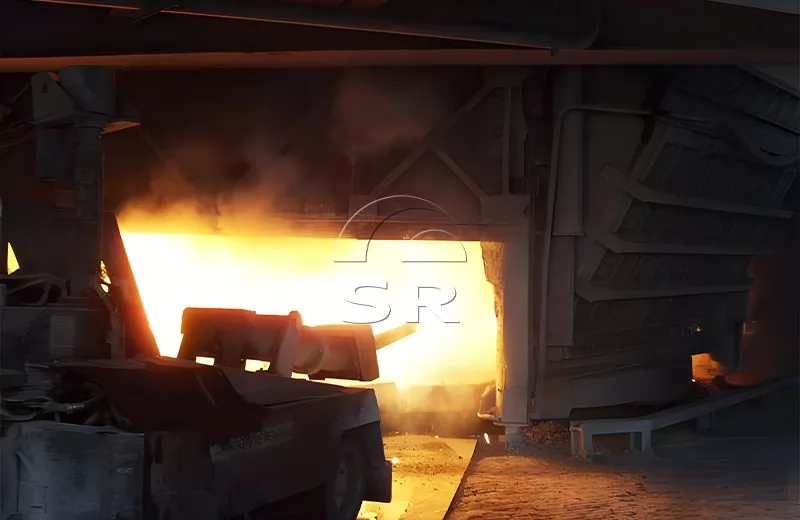

04
The electrode is inserted into the charge to perform a submerged arc operation. The energy of the arc and the current passing through the charge are used to generate energy due to the resistance of the charge to smelt the metal. It is an industrial electric furnace that continuously feeds materials, taps iron slag intermittently, and operates continuously.
05
The submerged arc furnace transformer has a continuous and stable load, low impedance voltage, many voltage regulation stages, small step differences and strong overload capability.
06
Submerged arc furnaces can achieve extremely low specific energy consumption, low reducing agent and electrode consumption, and very high production throughputs. The enclosed design also minimizes dust emissions into the factory environment and surrounding atmosphere.
Sanrui Submerged Arc Furnace Technology Optimization
Using the best available technology (BAT), the ferrosilicon submerged arc furnace designed and manufactured by Sanrui adopts advanced tubular water-cooled furnace cover technology, tubular water-cooled furnace wall technology, copper-steel composite plate conductive cross arm technology, EBT steel-tapping technology, large-section water-cooled cable technology, PLC control technology, high impedance technology, auxiliary energy technologies such as carbon-oxygen gun oxygen burner, oxygen-enriched operation technology and hot iron charging technology, etc.
We provide a series of ferrosilicon furnace cover designs to suit different ferrosilicon furnace applications. The closed furnace cover solution makes smelting and maintenance safer. The furnace cover is usually made of water-cooled steel plate, but a combined solution combining water-cooled steel plate and refractory materials can also be used. The airtight seal ensures low emissions and efficient collection and utilization of CO gas.
Minimizes consumption of energy, coke and electrode paste
Achieves high productivity and metal recovery, especially when using pellets
Purified CO gas can be used effectively in different plant applications
Preheating to 600ºC saves 70 kWh per ton of metal smelted for every 100ºC increase in temperature
Allows you to reduce operating costs and reduce CO₂ and dust emissions
Services Provided by Sanrui
1. As an submerged arc furnace manufacturer and supplier in China, Sanrui can provide basic layout and layout drawings
2. Sanrui will send engineers to your factory to install and debug the machine, providing trustworthy after-sales service.
3. Sanrui provides operation and maintenance personnel training, and the smelting equipment is easy to operate and maintain.
4. Competitive price and excellent quality
5. Low investment, high production efficiency and high rate of return
6. Smelting equipment has stable performance and safe production
7. Products can be customized according to different needs
8. Production capacity can be adjusted according to customer requirements
9. Environmentally friendly, low energy consumption
As an submerged arc furnace manufacturer and supplier, Sanrui provides engineering consulting, R&D, design, equipment supply, system integration and software preparation, construction, installation, commissioning, project management, technical services and training, production guidance, operation and maintenance, spare parts supply and other comprehensive engineering and technical services.
Send us your project details and our team of engineers will design a steelmaking production line solution based on your needs.
