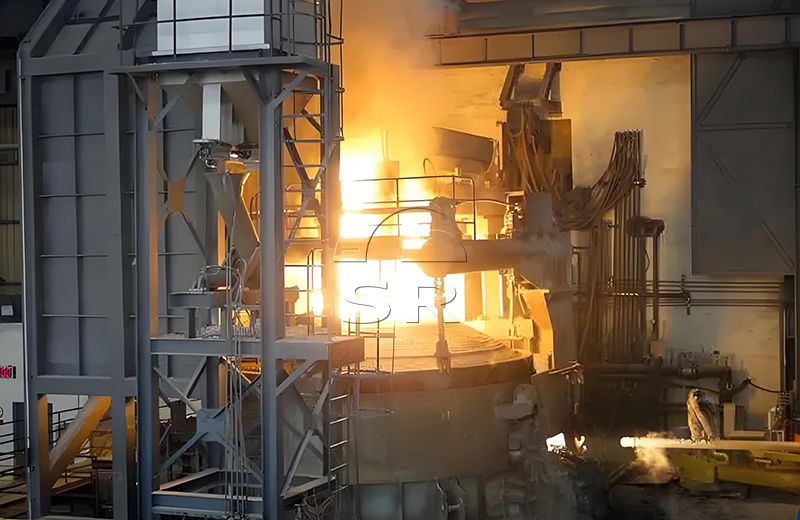

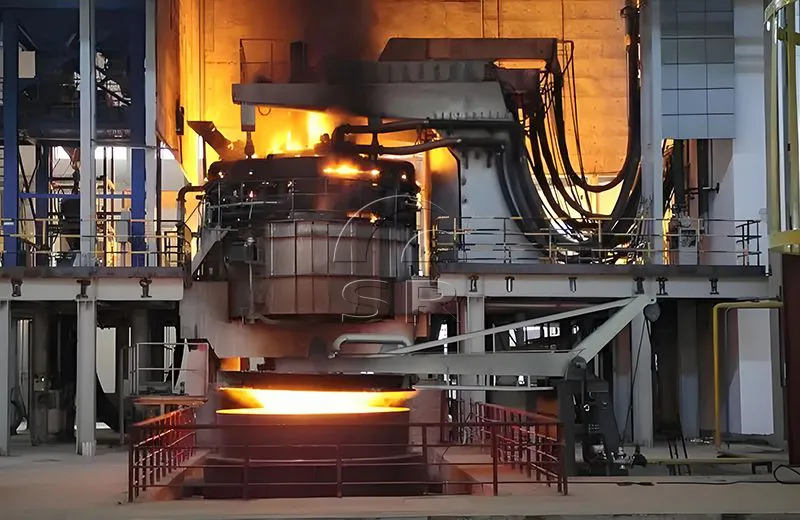

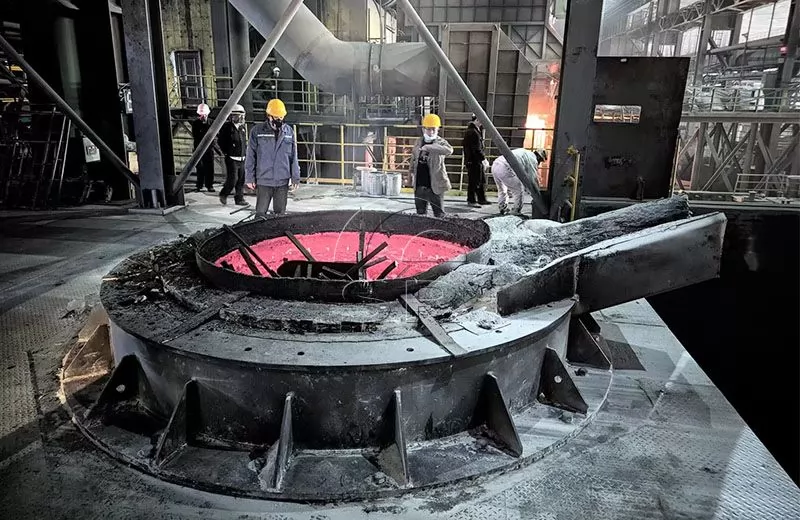

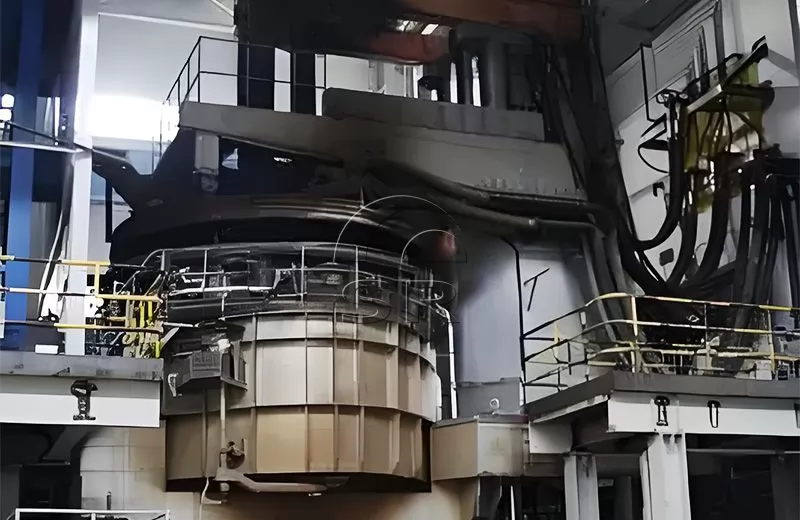

15 Ton Electric Arc Furnace Introduction
15 ton electric arc furnace is used for the short-process steelmaking process, using 100% scrap steel or scrap steel + molten iron (pig iron), or scrap steel + sponge iron (DRI) as raw materials for steelmaking.
The industrial electric arc furnace consists of three parts (lower furnace body, upper furnace body and furnace roof), which can be tilted hydraulically.

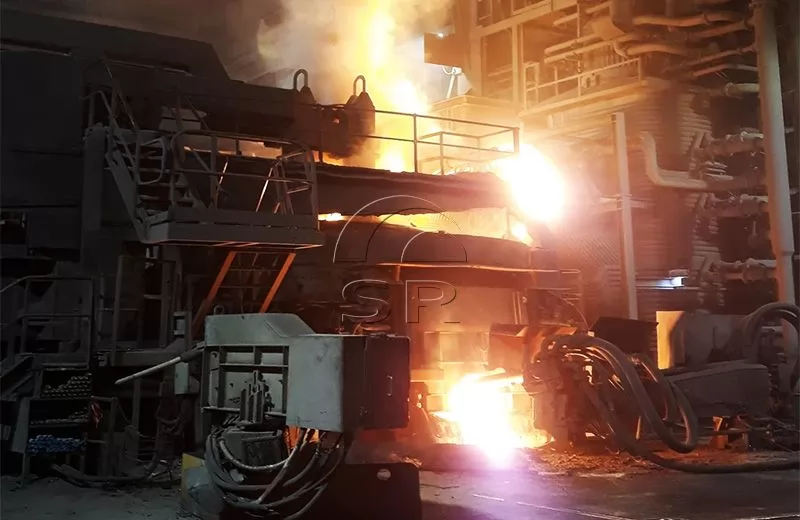

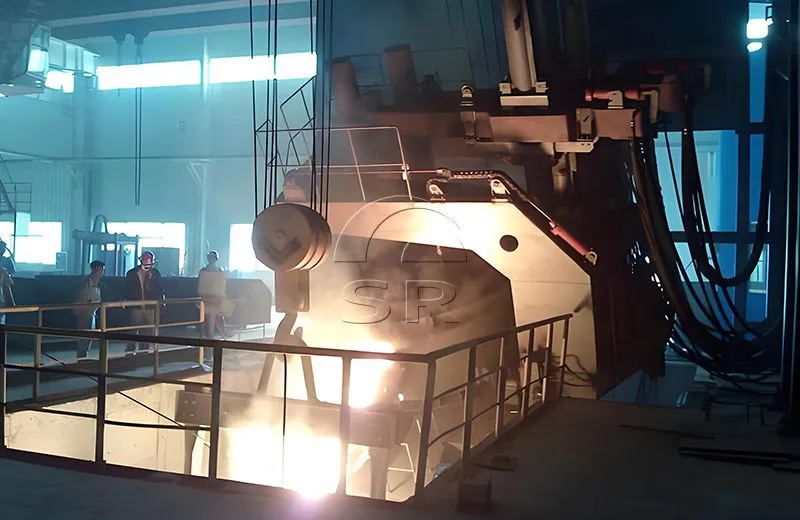

15 Ton Electric Arc Furnace Introduction
15 ton electric arc furnace is used for the short-process steelmaking process, using 100% scrap steel or scrap steel + molten iron (pig iron), or scrap steel + sponge iron (DRI) as raw materials for steelmaking.
Electric energy is used to melt scrap steel. An arc is formed between the charged material and the electrode. The heat generated by the arc melts the scrap.
The industry electric arc furnace consists of three parts (lower furnace body, upper furnace body and furnace roof), which can be tilted hydraulically.
The lower container, upper container and the inside of the top are lined with refractory materials. The outside and top of the container are usually composed of water-cooled steel structures.
Main Application of 15 Ton Electric Arc Furnace
Used to smelt ordinary steel
high-quality carbon steel
various alloy steels & stainless steel
15 Ton Electric Arc Furnace Equipment Features
15 ton HX series electric arc furnace is a furnace cover screw-open top charging form. According to the power matching, it is divided into ordinary power, high power, and ultra-high power; according to the operation mode, it is divided into two types: right operation and right operation; the steel tapping mode is divided into steel tapping from the steel tapping spout and eccentric bottom (EBT) steel tapping.
Adopting comprehensive energy utilization technology, equipped with furnace door carbon oxygen gun and furnace wall cluster oxygen gun, the secondary combustion of CO escaping from the molten pool effectively makes full use of the chemical energy in the flue gas to reduce power consumption and produce foam slag.
Adopting high impedance technology, increasing the secondary voltage, realizing long arc melting, and the arc is relatively stable. It reduces the impact on the power grid, the short-circuit system current is smaller, reducing energy consumption and electrode consumption, and improving the effective input of electricity.
Electric Arc Furnace Equipment Composition
15-ton electric arc furnace complete set of equipment includes furnace body, tilting platform, molten steel transport car, water-cooled furnace cover and smoke collection device, furnace cover rotation lifting mechanism, copper-steel composite conductive cross arm and electrode lifting device, secondary short network, hydraulic system, water cooling system, argon blowing system, ladle furnace transformer, high voltage system, low voltage electrical control and PLC automatic control system.
Sanrui EAF Technical Advantages
Low Power Consumption and Cost Reduction
The high current system of the metal electric arc furnace uses pure copper as the conductive medium, and the entire loop resistance is small. Taking full account of the skin effect when current passes through conductors, the cross arm adopts a box-shaped copper-steel composite plate structure, which can effectively reduce resistance and heat generation. Reasonable high-current system layout makes various current impedances smaller.
EAF Equipment Operation is More Stable and Smelting is Safer
The entire hydraulic drive is equipped with an accumulator, which stabilizes the pressure of the hydraulic system and makes the equipment run more stably. At the same time, in emergencies such as power outages, the equipment can continue to perform unfinished operations, which improves the safety of smelting.
Electrode Consumption Reduced
The anti-electrode breakage system can effectively reduce the chance of electrode breakage during the smelting process. In particular, avoiding electrode breakage during the scrap melting process is equivalent to saving an entire furnace of molten steel and reducing economic losses.
The Equipment is Simple to Operate and Easy to Use
Electrical automation control adopts human-machine interface, which simulates the form of real furnace body and is easy to operate. Batching, loading, smelting and tapping can all be operated on the computer.
High Arc Starting Efficiency
Using a new type of electrode adjustment system, the industrial electric arc furnace electrode lifting control breaks the previous single signal return control technology and adopts multi-signal collection and PLC signal comparison technology to increase the electrode arc starting speed and avoid long-term effects on the metal electric arc furnace during the arc starting process. Upper level power grid system.
Diversification of Dust Removal Systems
The dust removal systems we are equipped with are diversified and can be equipped with different forms of dust removal equipment according to the environmental protection requirements of different countries.
15 Ton Electric Arc Furnace Parameters
EAF-15 Ton Main Equipment Parameters
| No. | Item | Unit | Parameters |
| 1 | EAF type | set | EBT |
| 2 | Rated capacity | t | 15 |
| Average capacity | t | 18 | |
| Max tapping volume | t | 22 | |
| 3 | Transformer rated power | KVA | 9000 |
| 4 | Tap to tap time | min | 90 |
| 5 | Power on hours | min | 75 |
| 6 | Power consumption | KVA | ≤600 |
EAF-15 Ton Component Parameters
| No. | Item | Unit | Parameters | Remark |
| 1 | Transformer | |||
| Rated power | KVA | 9000 | Can be overloaded by 20% for a long time | |
| overload 20% | ||||
| Primary voltage | KV | 20 | ||
| Secondary voltage | V | 270-252-135V | 5 Gears | |
| Secondary current | A | 20620A | ||
| Voltage regulating | OFF Load | |||
| Cooling type | OFWF | |||
| 2 | Furnace shell | |||
| Inner diameter | mm | Φ3800 | ||
| 3 | Large current system | |||
| Impedance unbalance factor | % | <5 | ||
| Absolute value of reactance per phase | 2.46 mΩ | |||
| 4 | Electrode system | |||
| Electrode diameter | mm | Φ350 | graphite electrode | |
| Electrode distribution circle | mm | Φ960 | ||
| Lifting speed | m/min | up/ down：6/4 | ||
| Electrode lifting height | mm | 2800 | ||
| Lifting drive mode | hydraulic control | |||
| 5 | Tilting system | |||
| Tapping tilting angle | ° | 20 | ||
| Slag out angle | ° | 15 | ||
| 6 | Roof Swivelling | |||
| Lifting height | mm | 400 | ||
| Roof Swivelling angle | ° | 72 | ||
| Roof Swivelling time | °/s | 1~2 | ||
| 7 | Water cooling system | |||
| Flow rate | m3/h | 320 | ||
| Inlet pressure | MPa | 0.3～0.4 | ||
| Inlet temperature | ℃ | ＜35 | ||
| Outlet temperature | ℃ | ＜55 | ||
| 8 | Hydraulic station | |||
| Rated pressure | 17.5MPa | |||
| Working pressure | 10 MPa | |||
| Motor | N=30 kW | 2 units (one for use and one for backup) | ||
| Accumulator | 100Lx6 | |||
| Hydraulic medium | hydraulic oil | |||
| 9 | Centralize lubrication | |||
| Tank volume | L | 30 | ||
| Max working pressure | MPa | 21 | ||
| Lubricating medium | High temperature resistant dry grease | |||
Scope of Electric Arc Furnace Supply
As an small electric arc furnace exporter in China, Sanrui provide buy electric arc frunace by customized service as follows:
Furnace body: furnace shell, furnace door mechanism, tapping spout mechanism
Furnace roof: tubular water-cooled furnace roof, refractory center roof (this is a drawing produced by the seller, made by the buyer)
Furnace croof lifting and rotating mechanism: furnace cover lifting mechanism (cylinder, chain, gear, etc.), (Γ frame), rotating mechanism, rotating locking mechanism
Tilting mechanism: arc-shaped frame, base, tilting hydraulic cylinder
Electrode cross arm and lifting mechanism: electrode support arm, electrode clamping device, lifting mechanism
Short network: stainless steel bracket, compensator, water-cooled cable, stainless steel bracket, water-cooled conductive copper tube
Cooling water system: water inlet distributor, return water tank, pressure gauge, thermometer, valve
Hydraulic system: motor, pump, filter, tank, control valve, accumulator
High-voltage power supply system: isolation switch, voltage transformer, vacuum circuit breaker, current transformer, lightning arrester, etc.
Electric furnace transformer
Low voltage electrical system
Low-voltage power cabinet, PLC cabinet, main operating console, furnace front operating console, hydraulic operating box, control sensor, limit switch, etc.
Automation control system: Siemens PLC
Electric Arc Furnace Steelmaking Process
01
The basic process of industrial electric arc furnace steelmaking includes slag removal, metal charging, power supply, melting, oxidation, reduction refining and tapping. Depending on the characteristics of the type of steel being smelted, there are different operating methods. The smelting process mainly consists of three phases: melting, oxidation, and reduction.
02
With the continuous development of technology, the metal electric arc furnace steelmaking process has also undergone great changes. During the melting period, auxiliary energy is used to accelerate melting, such as injection of oil-oxygen, natural gas-oxygen or pulverized coal-oxygen. The melting time of each furnace is shortened by 15 ~20min, power consumption can be reduced by 50~60kWh/t;
03
During the oxidation period, measures such as early dephosphorization, intensive oxygen use, powder spraying to create foam slag, and rapid temperature rise can reduce the amount of oxidative decarburization from 0.3% in traditional processes to 0.1% to 0.15%, thus shortening the oxidation period by 50%. above.
04
In the reduction period, diffusion deoxidation in the traditional process is mainly replaced by precipitation deoxidation, and diffusion deoxidation is supplemented. White slag or carbide slag needs to be produced. Each furnace smelting takes 3 to 4 hours, and the power consumption is as high as 600 to 700kWh/t. Not only can the expected refining effect be achieved, but the steel quality is guaranteed and the reduction time can be shortened by more than 60%.
05
While improving the quality of molten steel, the process improvement has also increased productivity by about 20%, reduced power consumption by 10% to 15%, and reduced electrode consumption by about 8%, achieving considerable economic benefits.
Sanrui Electric Arc Furnace Technology Optimization
After optimizing industrial electric arc furnace technology, Sanrui has achieved the best balance between raw materials, scrap preheating, energy conservation and environmental protection, smelting process control, automation control, smelting cycle and production capacity. The electric arc furnace inputs electric energy into the electric arc steelmaking furnace through graphite electrodes, and uses the arc between the electrode end and the charge as the heat source for steelmaking.
The metal electric arc furnace uses electric energy as the heat source and can adjust the atmosphere in the furnace, which is extremely beneficial for melting steel types that contain more easily oxidized elements. Utilize high-temperature flue gas from electric furnaces to preheat raw materials through technology and equipment to achieve high efficiency, energy saving, environmental protection and high yield.
With the improvement of metal electric arc furnace equipment and smelting technology, and the development of the electric power industry, the cost of electric furnace steel continues to decrease. Nowadays, electric furnaces are not only used to produce alloy steel, but also to produce ordinary carbon steel and iron ore concentrate pellets.
Services Provided by Sanrui
1. As an small electric arc furnace exporter in China, Sanrui can provide foundation layout and layout drawings
2. Sanrui will send engineers to your factory to install and debug the machine, providing trustworthy after-sales service.
3. Sanrui provides operation and maintenance personnel training, and the smelting equipment is easy to operate and maintain.
4. Buy electric arc furnace with competitive price and excellent quality
5. Low investment, high production efficiency and high rate of return
6. Smelting equipment has stable performance and safe production
7. Buy electric arc furnace can be customized according to different needs
8. Production capacity can be adjusted according to customer requirements
9. Environmentally friendly, low energy consumption
Sanrui is well experience in design, manufacturing, installation, commissioning of steelmaking furnace process equipment.
Send us your project details to buy electric arc furnace and our team of engineers will design a steelmaking electric arc furnace production plan based on your needs.
