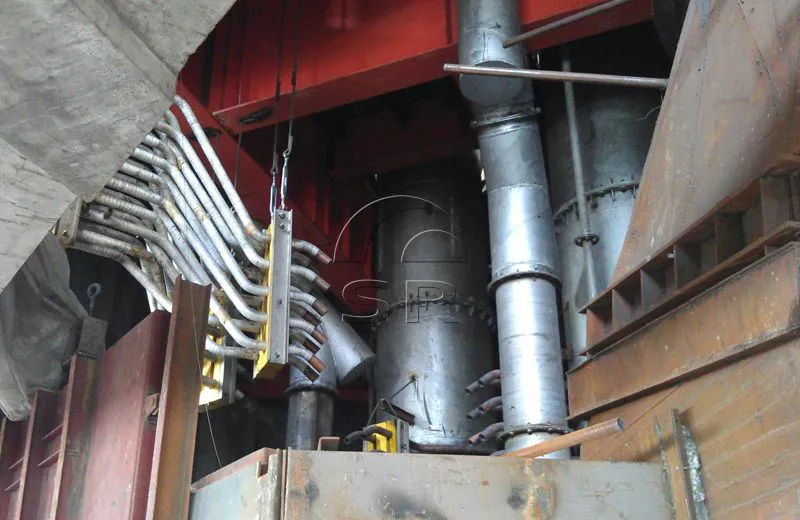

Brief Introduction

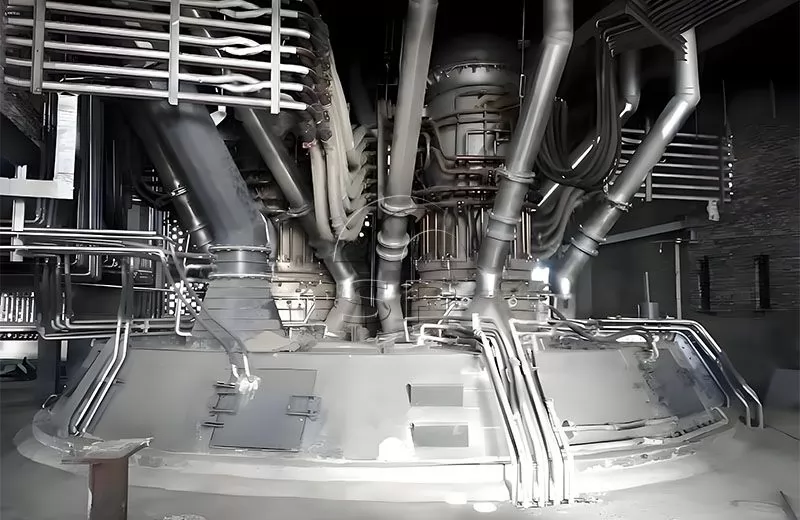

Short network (bus systems), also known as high current line, refers to the general term of the carrier fluid from the secondary outlet terminal of the transformer to the electrode (including the electrode).
The strong current flowing through the conductor of the short network will certainly form a strong magnetic field around the conductor of the short network (copper busbar), and generate a large power loss in the conductor of the short network and the steel components around the conductor, causing heat generation.
Brief Introduction to Electric Arc Furnace Submerged Arc Furnace Short Network
Electric furnace is an important process equipment in the steel making industry. During smelting, it is required to transmit dozens of thousands of amperes or even hundreds of thousands of amperes of strong current to the furnace. Such large current is transmitted by the short network.
Short network (bus system), also known as high current line, refers to the general term of the carrier fluid from the secondary outlet terminal of the transformer to the electrode (including the electrode).
Composition of Short Network
Short-network components are divided into the following parts:
Compensator: connect the low voltage end of the furnace transformer with the fixed part of the short network
Bus bar: the longest fixed part of the short network, which may be rectangular copper bar or water-cooled copper tube.
Fixed connection base: used to connect water-cooled flexible cable from busbar to short network and transmit current

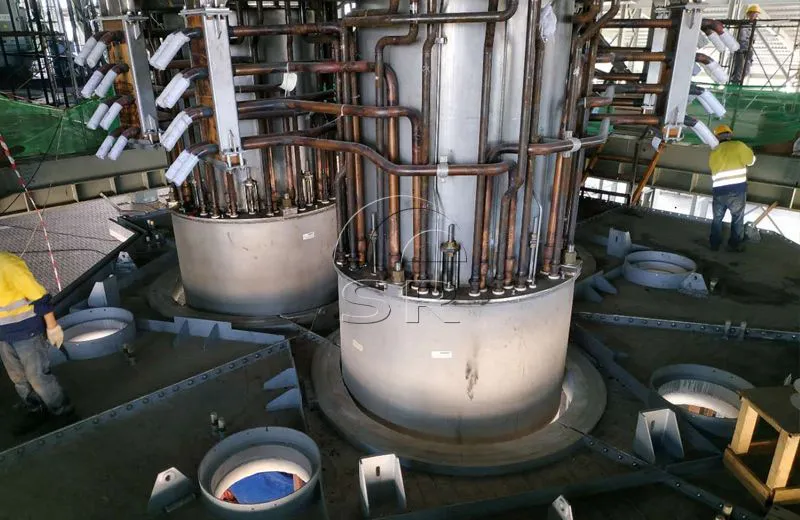

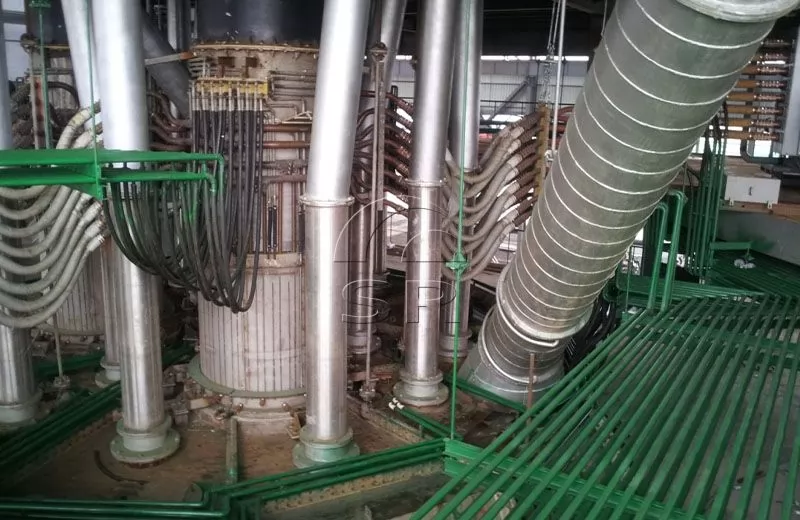

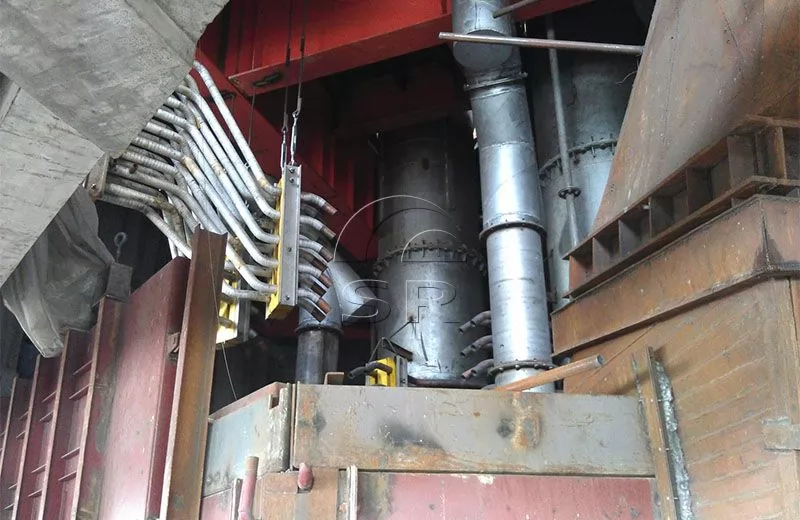

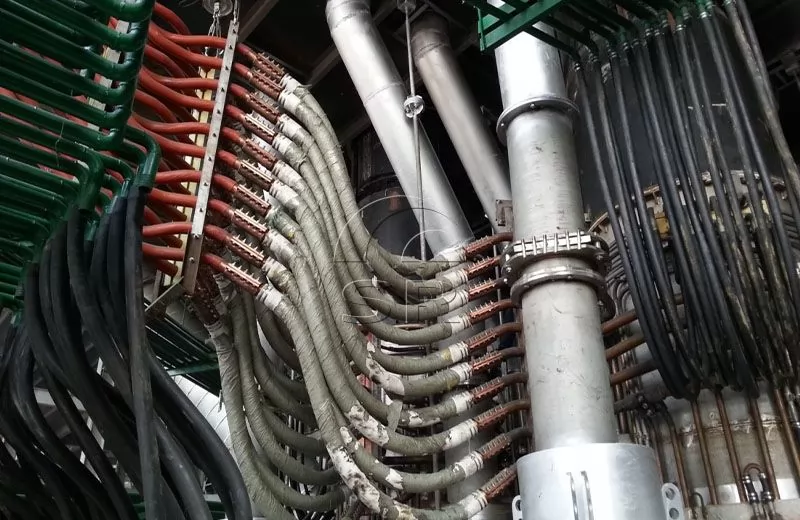

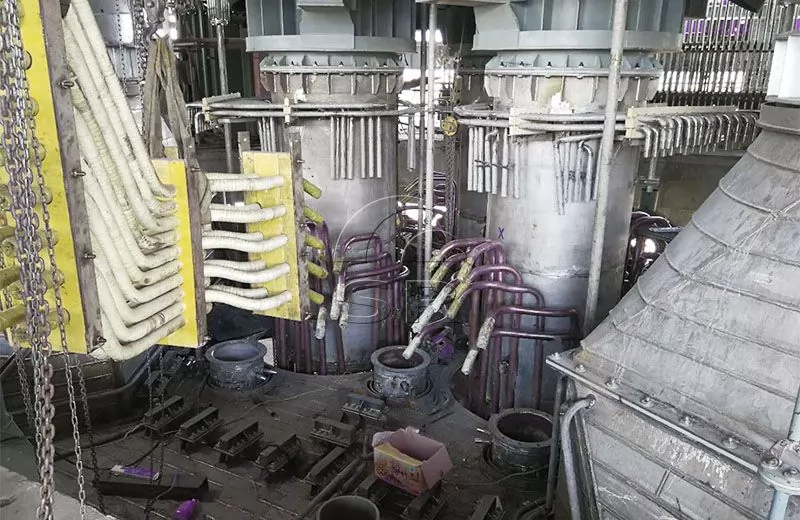

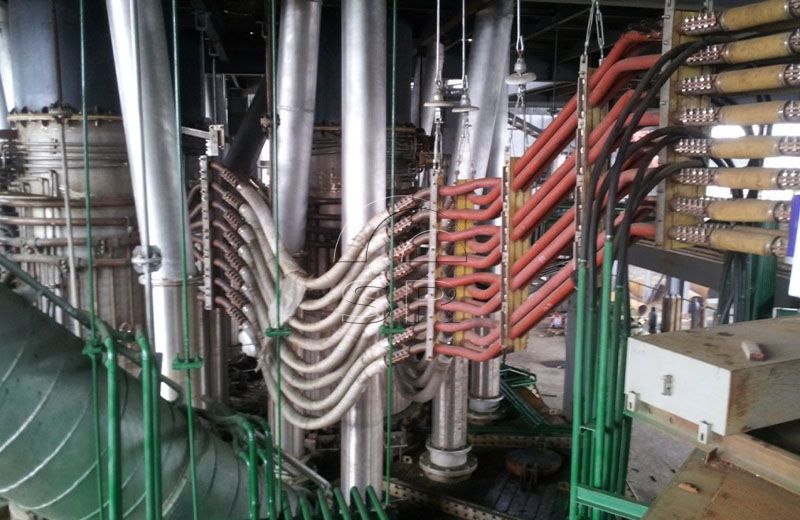

Water-cooled flexible cable: it is used to transfer the current from the fixed connection base to the movable connection base moving with the electrode holder.
Movable connection base: used to connect water-cooled flexible cable and electrode holder.
Conductor and lead structure of electrode holder.
Electrode Holder Collet: Used to transfer current from the electrode holder conductor to the electrode and prevent the electrode from falling off.
Electrode.
Features of Short Network
Electric Furnace Short Network has the Following Characteristics:
Large Current
The strong current flowing through the conductor of the short network (copper bus tubes) will certainly form a strong magnetic field around the conductor of the short network, and generate a large power loss in the conductor of the short network and the steel components around the conductor, causing heat generation.
Short Length
The length of the whole short network (copper busbars) shall not exceed 20m for large furnaces. Due to the large loss of the short network, its length, especially the length of water-cooled flexible cable, shall be shortened as much as possible during design, so as to minimize the loss of the short network.
Complex Structure
Different conductors in short network(water cooled bus tube) have different structures, shapes, number of parallel conductors and arrangement modes. Therefore, during the design of bus system, the influence of skin effect and proximity effect shall be taken into consideration, and the conductor section shall be selected according to the specified current density. Meanwhile, attention shall be paid to the reasonable configuration and optimal transposition of conductors, so as to minimize the effective inductance, balance the current of each conductor and make the phase parameters as close as possible.
Poor Working Environment
Water cooled high current bus conductor operates in harsh environment with high temperature and much conductive dust.
Technical Advantages
Practice has proved that the electrical parameters of the short network play a decisive role in the normal operation of the furnace.
The production rate of the furnace, the service life of the furnace lining, the power loss and the power factor depend on the selection of the electrical parameters of the short network to a large extent.
A reasonable water cooled high current bus design must ensure stable combustion of arc in the furnace, with minimum electric loss, high power factor and three-phase power balance. Resistance and reactance of the copper busbars must be reasonable minimum values. Three-phase impedance shall be balanced. Material use of short network structure shall be minimized, especially the consumption of nonferrous metals shall be minimized, maintenance shall be simple and operation shall be reliable.
