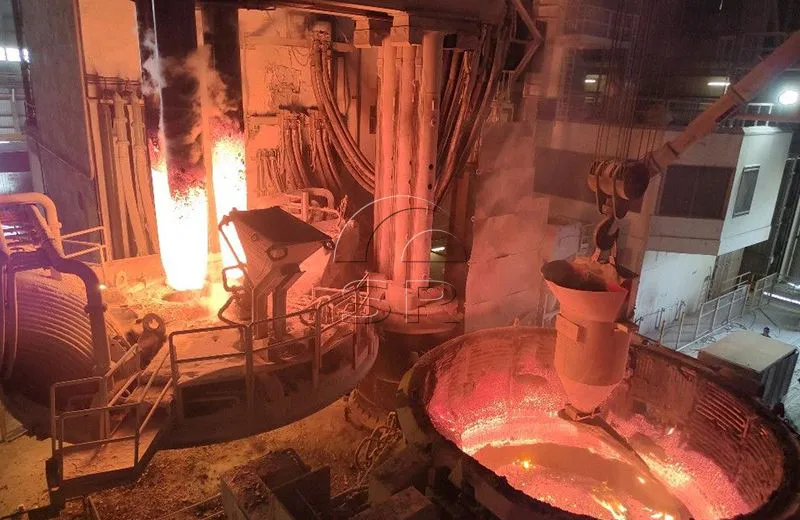

Electrode Lifting Mechanism

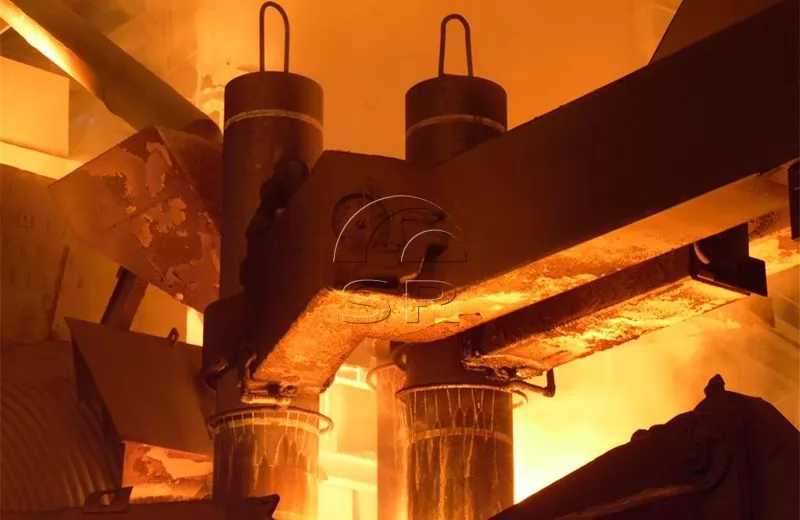

The electrode lifting mechanism of electric arc furnace is composed of conductive cross arm and electrode column device.
Electrode Lifting Mechanism
The electrode lifting mechanism of electric arc furnace is composed of conductive cross arm and electrode column device.
The conductive cross arm is composed of three sets of copper-steel composite conductive arms, three sets of electrode clamping and loosening mechanisms, electrode chuck and electrode spraying device.
The electrode post device is composed of three sets of electrode posts, post hydraulic lifting cylinder, post guide wheel device and all insulating parts connected with the cross arm.
Electrode lifting device consists of two parts: electrode cross arm and electrode stand column device. The electrode cross arm consists of copper-steel composite conductive cross arm, electrode clamping and loosening mechanism, electrode chuck and three sets of electrode spraying devices. The electrode chuck is made of copper forging.
Electrode post device includes electrode post, post guide wheel device and electrode lifting hydraulic cylinder.
Meanwhile, all insulating parts, fasteners, water pipeline and pipe fittings connected to post and cross arm are provided.
The surface of column guide rail is subject to heat treatment, with good abrasion resistance.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
Furnace Cover Lifting and Rotating Device
The furnace cover lifting and rotating device consists of a furnace cover lifting mechanism, a rotating mechanism and a rotating frame.
Submerged Arc Furnace Pressure Ring
Submerged arc furnace pressure ring is used to monitor the change of air pressure in the furnace in real time, and adjust the air pressure automatically or manually according to the preset parameters to ensure the stability of air pressure in the furnace
The conductive arm of an electric arc furnace (EAF) is primarily composed of the front electrode conductive arm holder, a water-cooled clamping ring, the arm body, and the rear conductive copper plate.
The submerged arc furnace water cooled compensator is a pipe device composed of inner and outer tubes, water tubes, elongation indicators and fixed supports.
Forged copper tile is one of the main accessories in submerged arc furnace (silicon metal furnace, calcium carbide furnace and iron alloy furnace). It generates heat energy due to passing through large current at high temperature, and is easy to be damaged due to poor working environment.
Submerged Arc Furnace Open-hole Plugging Machine
Submerged arc furnace open-hole plugging machine refers to the special equipment used to open and block the iron outlet by submerged arc reduction electric furnace for smelting iron alloy.

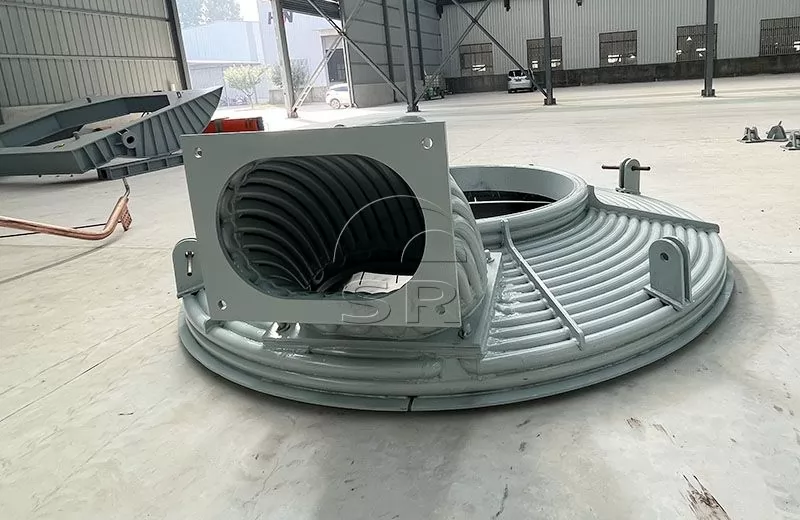

The water-cooled furnace cover of the arc furnace adopts the tubular frame water-cooling furnace cover, and the water-cooled cover is designed as per two halves for the convenience of replacement and transportation.
