50-Ton Electric Arc Furnace Project In China

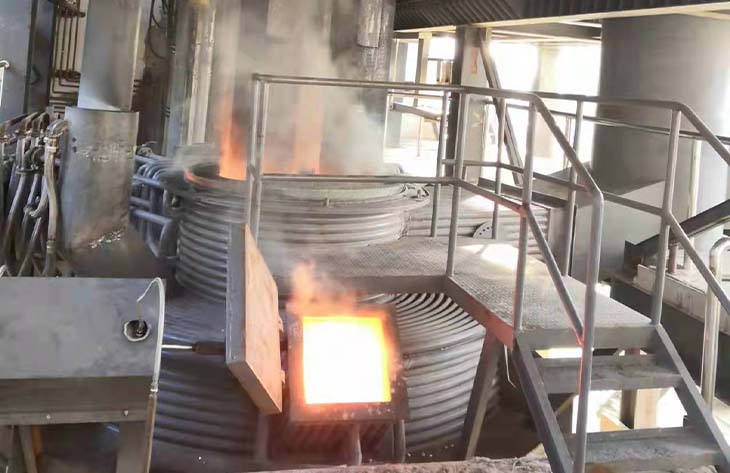

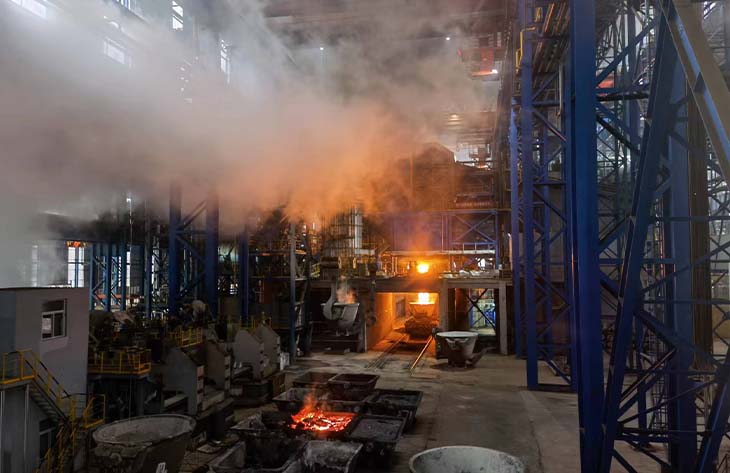

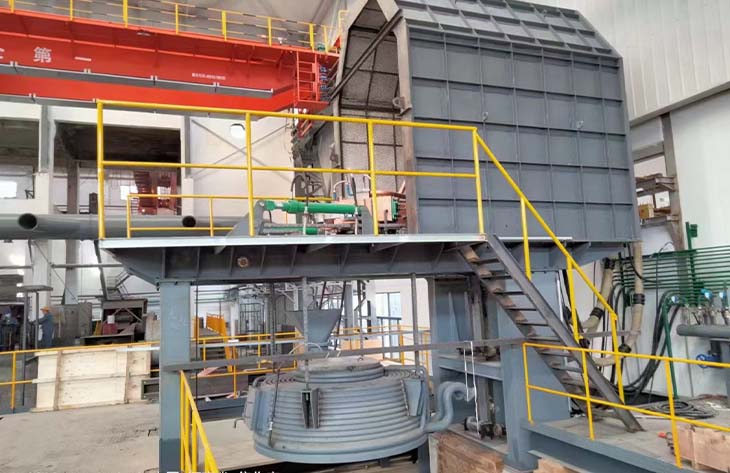

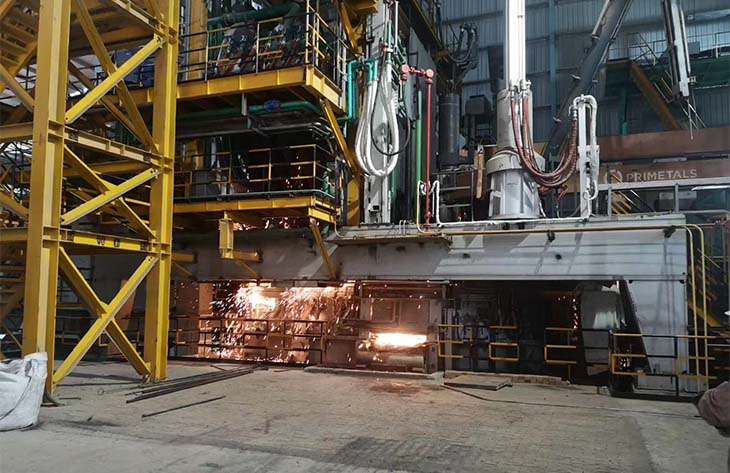

1 EAF-50t/32 MVA electric arc furnace, 1 LFV-60t/16MVA refining furnace, 1 VC-90t/60t vacuum pouring device, 2 sets of fully automatic alloy feeding systems, 1 set of 120000Nm3/h dust removal system, and others Public auxiliary facilities (ladles, ladle trucks, etc.) and three power supporting systems (high voltage, low voltage, automation).
The production variety is special steel, and the products are castings (sand molds, steel ingot molds).
Technical parameters: Transformer rate power: 32MVA, furnace shell diameter: Ф5200mm, electrode diameter: Ф450mm, EBT tapping method.
Previous: None
Related Projects
Sanrui metallurgy furnace equipment integration services are submerged arc furnaces and electric arc furnaces. Sanrui metallurgy furnaces are manufactured using cutting-edge technology to ensure an efficient, high-quality melting process. These furnaces are capable of melting a variety of materials, including steel, iron and alloys, ferroalloys (such as ferrotungsten, high carbon ferromanganese, high carbon ferrosilicon, high carbon ferrochromium, ferronickel alloys) and industrial silicon, calcium carbide, corundum, yellow phosphorus, etc. with precise temperature control and minimal energy consumption. By using Sanrui metallurgy furnace equipments, metallurgical companies can increase productivity and reduce production costs, ultimately increasing profitability.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
The main mechanical device design of Sanui ferrosilicon furnace combines China's national conditions and draws on international advanced technologies such as Demark and Pyremate.
25500KVA Industrial Silicon Submerged Arc Melting Furnace
Industrial silicon submerged arc furnace is an important equipment in silicon ore processing, playing a key role in the silicon industry.
Ladle preheating system is a technical means adopted to improve the scrap rate of converter in the process of steel smelting.
An induction furnace is an electric furnace that uses the induction electrothermal effect of the material to heat or melt the material. The main components of an induction furnace are sensors, furnace body, power supply, capacitors and control system.

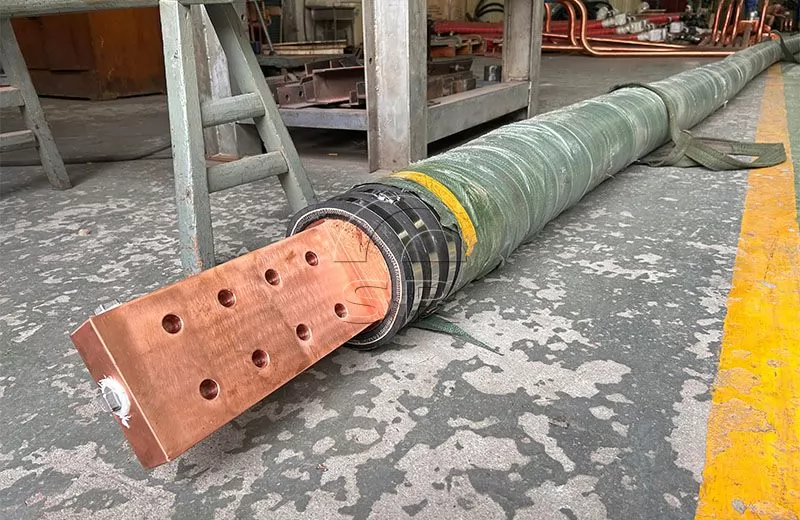

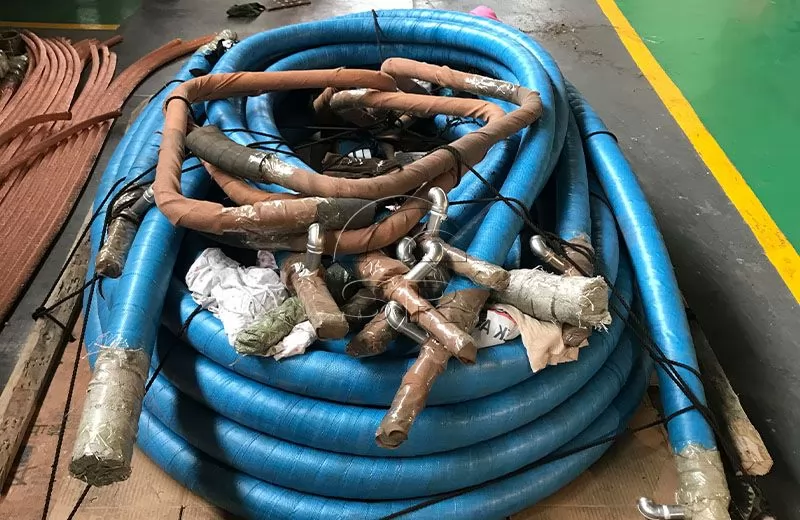

Induction furnace's IF Water-cooled cable of is a cable system that transmits electric energy and cooling water to IF electric furnace at the same time.
Ladle plunger mechanism is a key component used for ladle (container with liquid molten steel) in metallurgical industry.
The scrap charging basket of the electric arc furnace is mainly used for loading and conveying raw materials such as scrap steel into the electric arc furnace for smelting.

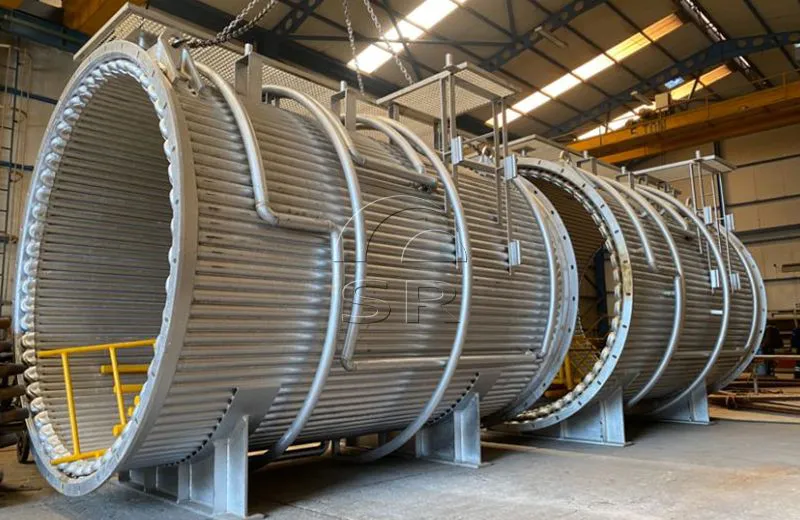

The submerged arc furnace water cooled compensator is a pipe device composed of inner and outer tubes, water tubes, elongation indicators and fixed supports.
Sanrui is well experience in design, manufacturing, installation, commissioning of steelmaking furnace process equipment. Send us your project details inquiry and our team of engineers will design a metallurgical furnace equipment system solution from A to Z based on your needs.
