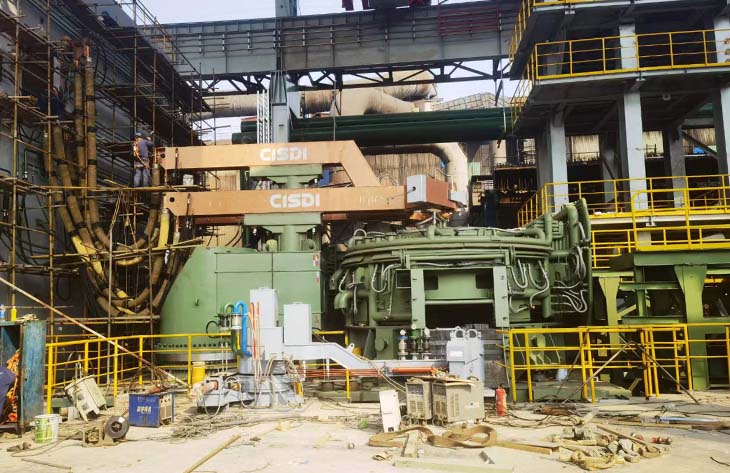

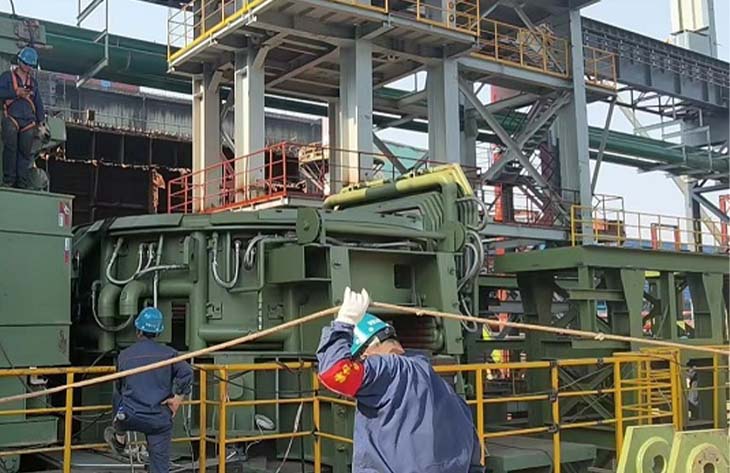

50-ton Electric Arc Furnace Project in Brazil

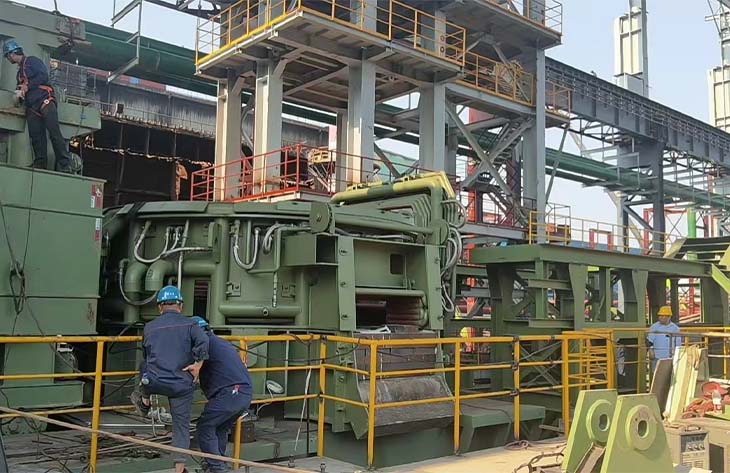

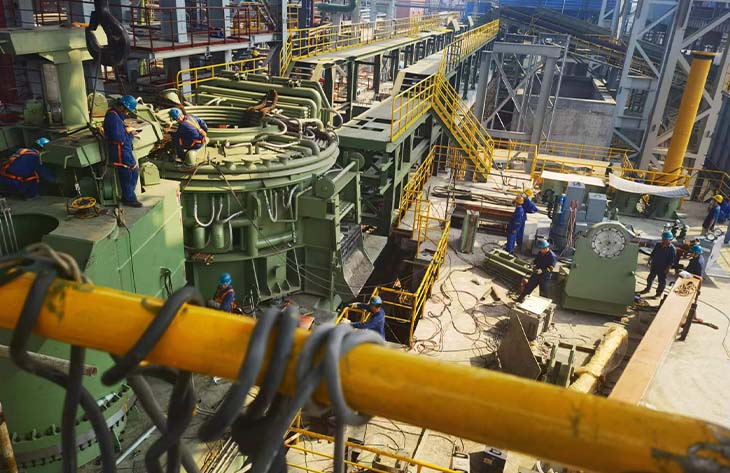

1 EAF-50t/25 MVA electric arc furnace, 2 LF-25t/5MVA refining furnaces, 1 fully automatic alloy charging system, as well as other public auxiliary facilities (ladle, ladle cart, material basket, etc.) and three power supporting systems ( High pressure, low pressure, automation).
The production variety is special steel, and the products are castings (sand molds, steel ingot molds).
Technical parameters: Transformer rate power: 25MVA, furnace shell diameter: Ф4800mm, electrode diameter: Ф450mm, tilting angle: 40/10 degrees, trough tapping method.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
The scrap charging basket of the electric arc furnace is mainly used for loading and conveying raw materials such as scrap steel into the electric arc furnace for smelting.
Submerged Arc Furnace Combined Holder
Series submerged arc furnace combined holder electrode includes: 12.5MVA submerged arc furnace electrode, 16.5MVA submerged arc furnace electrode, 25.5MVA submerged arc furnace electrode, 30.0MVA submerged arc furnace electrode, etc.
3 Tons Medium Frequency Coreless Induction Furnace
The 3-ton medium frequency coreless induction furnace adopts a 6-phase 12-pulse double rectifier control system. A 2000KVA special rectifier transformer is used for the 2000KW medium frequency power supply.
Ultra-high Power Electric Arc Furnace
Ultra-high power electric arc furnace mainly changes the arc characteristics of high voltage and long arc to the arc characteristics of high current, low voltage and short arc
Titanium slag production adopts titanium slag electric furnace (circular furnace and rectangular furnace according to its shape) smelting process.
The induction coil is the heart of the induction furnace. The induction coil converts the electromagnetic energy into heat energy through the induction coil to melt the metal furnace charge in the crucible.
Ladle baking furnace, also known as ladle roaster, is a special equipment used for baking ladle, and a device used for baking newly built ladle and ladle before containing molten steel.
Electric Arc Furnace Steel Making
Electric arc furnace steel making is a steelmaking method that uses the thermal effect of electric arc to heat the charge for melting.
Sanrui is well experience in design, manufacturing, installation, commissioning of steelmaking furnace process equipment. Send us your project details inquiry and our team of engineers will design a metallurgical furnace equipment system solution from A to Z based on your needs.
